LMIK Linear Bushing

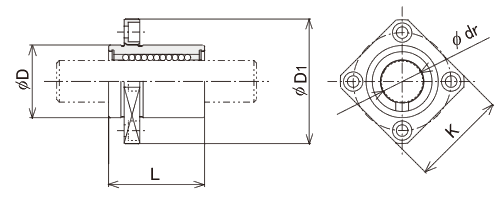

Drawing
Datasheet
| Model No. | Main dimensions | ||||||||
| Inscribed bore diameter | Outer diameter | Length | Flange | diameter | |||||
| dr | Tolerance | D | Tolerance | L | Tolerance | D1 | Tolerance | ||
| Precision | High | Precision/High | |||||||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| LMIK 6 | 6 | — | — | 12 | 0 | 19 | ±0.3 | 28 | 0 |
| -0.011 | -0.2 | ||||||||
| LMIK 8 | 8 | — | — | 15 | 0 | 24 | ±0.3 | 32 | 0 |
| -0.011 | -0.2 | ||||||||
| LMIK 10 | 10 | — | — | 19 | 0 | 29 | ±0.3 | 39 | 0 |
| -0.013 | -0.2 | ||||||||
| LMIK 12 | 12 | — | — | 21 | 0 | 30 | ±0.3 | 42 | 0 |
| -0.013 | -0.2 | ||||||||
| LMIK 13 | 13 | — | — | 23 | 0 | 32 | ±0.3 | 43 | 0 |
| -0.013 | -0.2 | ||||||||
| LMIK 16 | 16 | — | — | 28 | 0 | 37 | ±0.3 | 48 | 0 |
| -0.013 | -0.2 | ||||||||
| LMIK 20 | 20 | — | — | 32 | 0 | 42 | ±0.3 | 54 | 0 |
| -0.016 | -0.2 | ||||||||
| LMIK 25 | 25 | — | — | 40 | 0 -0.016 | 59 | ±0.3 | 62 | 0 -0.2 |
